HEDLAND Turbine Flow Meters (Water/Water-Based Fluids)


Turbine Meters

Spec & Tech Sheets

DR-A Low Pressure Back Pressure Valve
Hedland Turbine Model 1100

Benefits & Features

  • Flow ranges: 0.6 - 3.0 GPM (2.27 - 11.36 LPM)
    up to 500 - 5000 GPM (1893 - 18927 LPM)
  • Rugged contruction
    - Body: T316 Stainless steel
    - Rotor: T416 Stainless steel
    - Internal supports: Tungsten carbide
    - Bearings: Tungsten carbide journals
    - Retaining rings: T303 Stainless steel
    - Pick-up: Magnetic, Standard
  • Meter bore sizes from 3/8 to 10 inch
  • Ports:
    - 1/2 to 2 inch NPT
    - 3 to 10 inch Victaulic® grooved ends
  • Pressure: 5,000 psi (345 bar) maximum
  • Temperature:
    - Standard: 330° F (165° C) maximum
    - High Temp: 450° F (232° C) maximum
  • Accuracy within ±1% of reading
  • Standard calibration: 1.0 specific gravity for water and water-based liquids
  • Magnetic pick-up output: 30 millivolts to 3 volts – peak-to-peak



Electronic Readouts

Spec & Tech Sheets

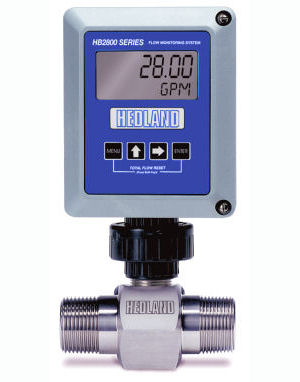

Hedland Electronic Readout HB2800

Benefits & Features

The Hedland Model HB2800 is a state-of-the-art flow monitor designed to be utilized with all Hedland HB Series turbine flow sensors. The HB2800 comes pre-calibrated by the factory when ordered with a Hedland HB Series turbine flow sensor, or the monitor may be configured in the field. The HB2800 may also be used with almost any flow sensor that outputs a low-amplitude AC signal.

Features include:

  • Microprocessor-based
  • Battery (1.5 VDC) or loop-powered (4-20 mA) versions
  • Extra large rate and total display
  • Meter, remote, panel, or swivel mount options
  • NEMA 4X/CSA Type 4 enclosure
  • Intrinsically safe
  • Explosion-proof model available



Electronic Accessories

Spec & Tech Sheets

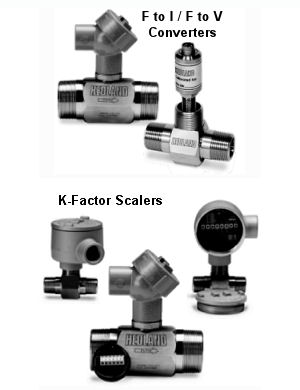

Hedland F Converters and K Factor Scalers

Benefits & Features

  • F-I Analog Transmitter
    - Converts frequency outputs to 4–20 mA output
    - Cannister or condulet models available
    - 2-wire loop powered
  • F-V Analog Voltage Transmitter
    - Converts frequency outputs to 0–5 Vdc output
    - Cannister or condulet models available
    - Requires 10-30 Vdc power supply
  • K-factor Scaler
    - Scales turbine meter output to esired engineering unit
    - Amplifies turbine meter pulse output
    - Converts frequency outputs into recognizable units for PLCs and other devices
    - NEMA 4X enclosure
    - Requires 8.5–30 Vdc power supply
  • Cables
    - Standard 10 foot cables
    - Variety of connectors
